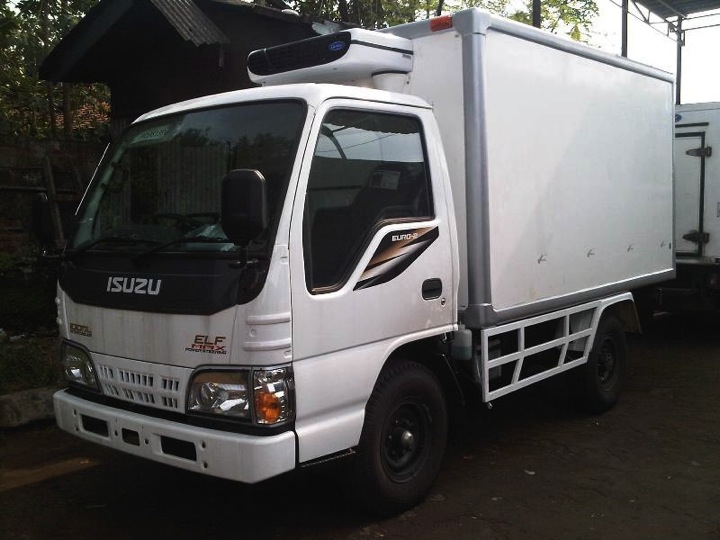

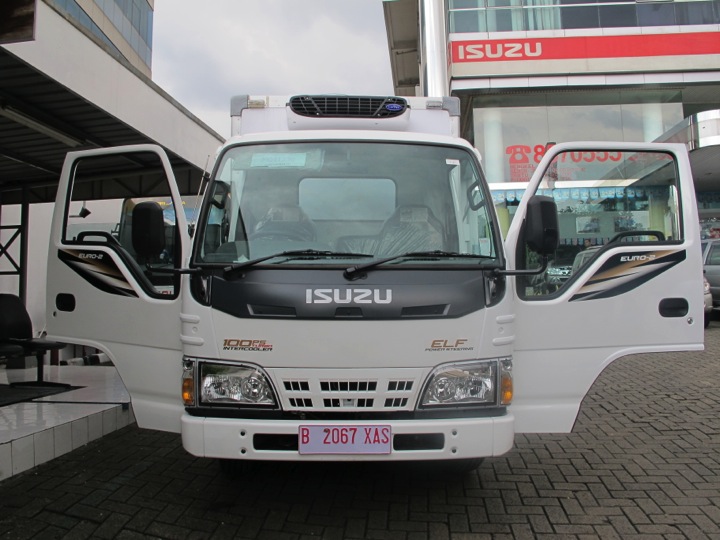

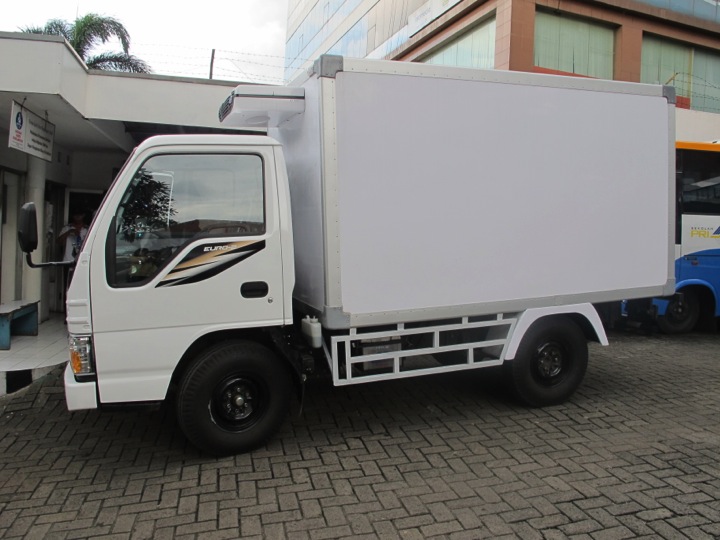

Aplikasi Karoseri BOX FIBER PENDINGIN ISUZU NHR-55 CC

Type      : NHR 55 CC (4Ban) 100 PS

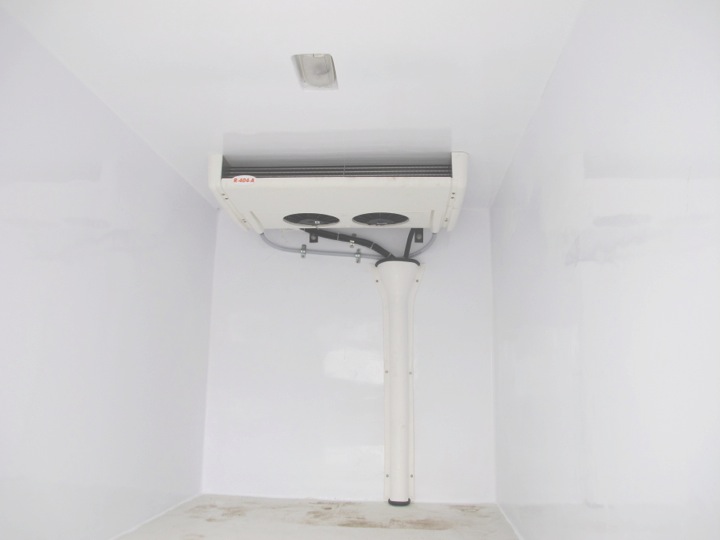

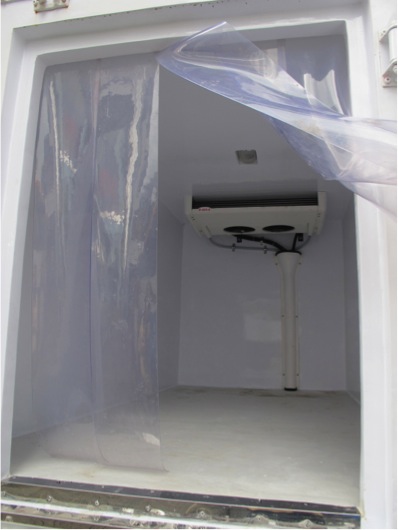

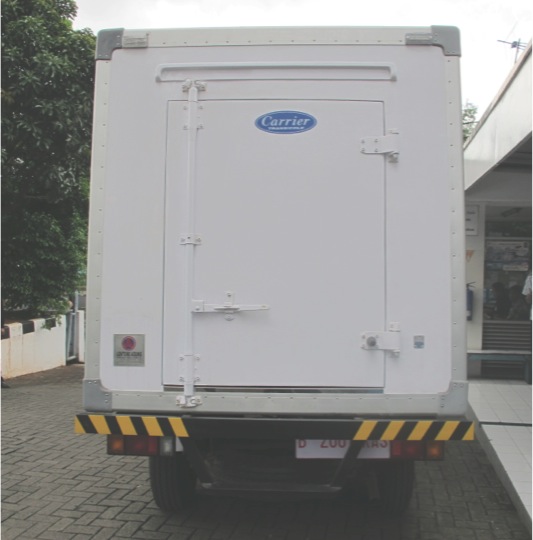

Aplikasi: BOX Fiber Pendingin
Karoseri: PT. Lenteng Agung





Spesifikasi NHR 55 CC

Dimensi

Panjang Keseluruhan 4,590 (mm)
Lebar Keseluruhan 1,695 (mm)
Tinggi Keseluruhan 2,127 (mm)
Jarak Terendah 210 (mm)
Jarak Poros Roda 2,490 (mm)
Jarak Pijak Roda Depan 1,425 (mm)
Jarak Pijak Roda Belakang 1,405 (mm)
Seating Capacity (person)
Front Axle Capacity 1,600 (kg)
Rear Axle Capacity 3,500 (kg)

Mesin

Model/Tipe 4JB1-TC
Sistem injeksi bahan bakar OHV, Direct Injection 4 Cylinders
Isi silinder 2,771 (cc)
Tenaga maksimum 100 / 3,400 (PS/rpm)
Torsi maksimum 22.5 / 2,000 – 3,200 (Kgm/rpm)
Garis tengah x langkah 93 x 102 (mm)
Radius Putar 5.4 (liter)

Ban & Velg

Ban Depan Single ,7.50 – 15 – 10PR
Ban Belakang Single, 7.50 – 15 – 10PR

Berat

Curb Weight (berat kosong) 1,610 (kg)
Gross Vehicle Weight (berat total) 5,100 (kg)

Transmisi

Model MSB5S
C
gigi 1 5.016
gigi 2 2.672
gigi 3 1.585
gigi 4 1.000
gigi 5 0.770
gigi 6
gigi 7
gigi 8
Rev 4.783
Final Gear Ratio 4.875

Rem

Service brake
Parking brake
Exhaust brake

Suspensi

Depan
Belakang
