Isuzu Giga FVR 34 L

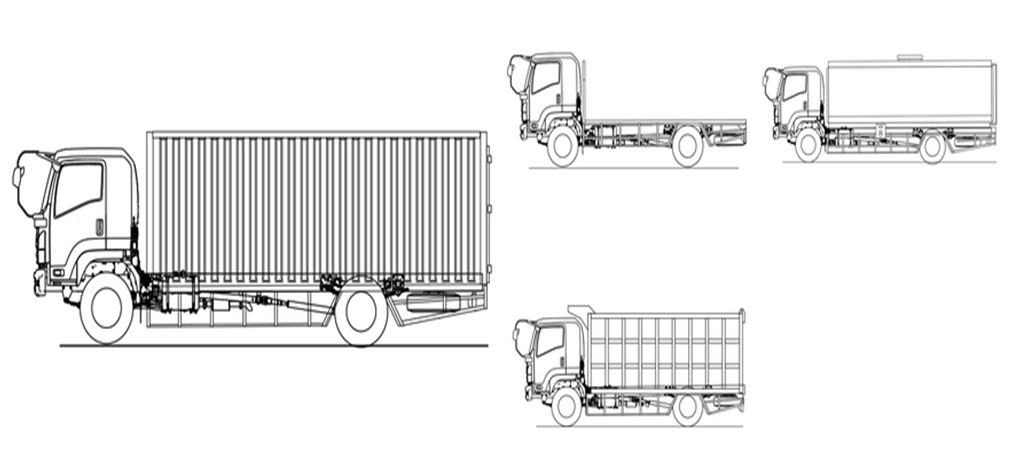

Mesin tipe inline Six cylinder, OHC, Direct injection diesel. 7,790 cc dan common rail. Sangat cocok untuk caroser Tank, Box alumunium/ Steel, Wing Box, Flat Bed, dll.
Memiliki ketebalan Chasis 6 mm dengan kabin jungkit, exhaust brake, Camera reserve parking, Radio single cd Kenwood, Power Steering, Safety Belt otomatis.
Isuzu Giga FVR 34 L
Isuzu Giga FVR 34 L

Isuzu GIGA FVR 34 L

Spesifikasinya adalah sebagai berikut :

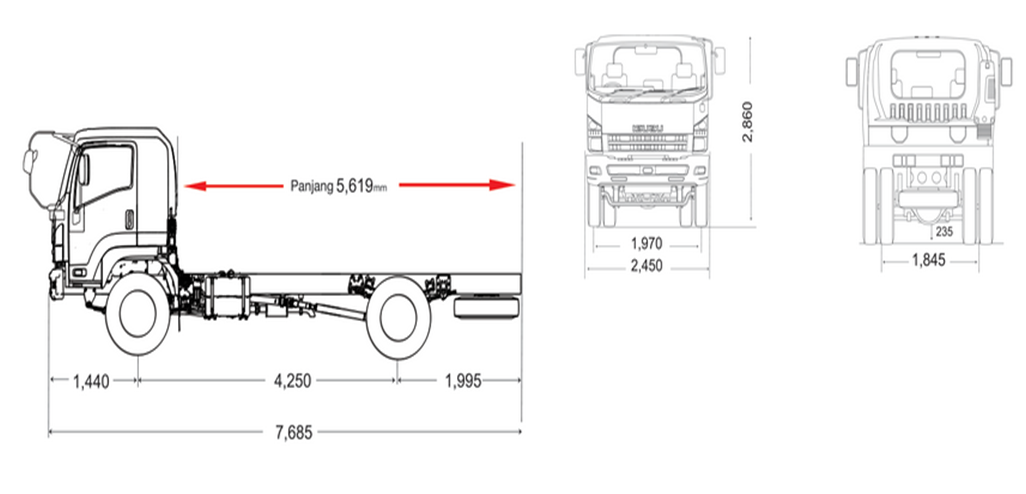

Dimension
Over all Length (OAL)mm7,685
Over all Width (OW)mm2,450
Over all Height (OH)mm2,860
Wheel Base (WB)mm4,250
Front Over Hang (FOH)mm1,440
Rear Over Hang (ROH)mm1,995
Cabin to end ( CE )mm5,619
Min. Clearence (HH)mm235
Tread Front (AW)mm1,970
Tread Rear (CW)mm1,845
Weight
Total Vehicle Masskg4,782
Gross Vehicle Mass (GVW)kg16,000
Engine
Engine Model6HK1-TCN
TypeInline Six Cylinder, OHC, Direct Injection Diesel
Bore and Strokemm115×125
Piston Displacementcc7,790
Max. OutputPS/rpm240/2,400
Max. TorqueKgm/rpm72/1,450-2,400
Transmission
Transmission ModelMZW6P
1st6,615
2nd4,095
3rd2,358
4th1,531
5th1,000
6th0,722
Rev.6,615
Final Gear Ratio7,167
Brake
Brake ControlAir Over Hydraulic
Tire
Front Tyre10.00-20-16PR (Miller)
Rear Tyre10.00-20-16PR (Miller)
Suspension
Suspension FrontMultileaf
Suspension RearMultileaf
Others
Fuel Tank CapacityLiter200
Min. Turning Radiusm7,1
Max. Gradeability%37
Max. SpeedKm/h95
AlternatorV-A24-50
Cabwide-5(with bed space)
Frame Dimension850x254x8
Emisi RegulationEuro-2
