ISUZU C-SERIES
CYZ 51 Q
*) Estimasi harga on the road 2013 dan locco jakarta.
*) Harga dapat berubah-ubah tanpa pemberitahuan terlebih dahulu.
SPESIFIKASI
| Dimensi |
| |
| Panjang Keseluruhan |
9775 |
(mm) |
| Lebar Keseluruhan |
2490 |
(mm) |
| Tinggi Keseluruhan |
2970 |
(mm) |
| Jarak Terendah |
240 |
(mm) |
| Jarak Poros Roda |
– |
(mm) |
| Jarak Pijak Roda Depan |
1400 |
(mm) |
| Jarak Pijak Roda Belakang |
3125 |
(mm) |
| Seating Capacity |
– |
(person) |
| Front Axle Capacity |
2065 |
(kg) |
| Rear Axle Capacity |
1850 |
(kg) |
| Mesin |
| |
| Model/Tipe |
6WF1-TC |
|
| Sistem injeksi bahan bakar |
– |
|
| Isi silinder |
14,256 |
(cc) |
| Tenaga maksimum |
360/1800 |
(PS/rpm) |
| Torsi maksimum |
145/1100 |
(Kgm/rpm) |
| Garis tengah x langkah |
– |
(mm) |
| Kapasitas Tangki |
– |
(liter) |
| Ban & Velg |
| |
| Ukuran ban |
– |
|
| Bahan |
– |
|
| Ban Depan |
11.00-20-16PR |
|
| Ban Belakang |
11.00-20-16PR |
| Berat |
| |
| Curb Weight (berat kosong) |
8.730 |
(kg) |
| Gross Vehicle Weight (berat total) |
29.000 |
(kg) |
| Transmisi |
| |
| Model |
MAL6U |
|
| C |
– |
|
| gigi 1 |
6.000 |
|
| gigi 2 |
4.007 |
|
| gigi 3 |
2.342 |
|
| gigi 4 |
1.468 |
|
| gigi 5 |
1.000 |
|
| gigi 6 |
0.724 |
|
| gigi 7 |
– |
|
| gigi 8 |
– |
|
| Rev |
6.359 |
|
| Final Gear Ratio |
– |
| Fitur & Standard |
| |
| Air Conditioning |
– |
|
| Radio CD+MP3 |
– |
|
| Power Steering |
– |
| Lain-Lain |
| |
| Kursi supir |
– |
|
| Seat belt |
Yes |
|
| Accu |
12-120×2 |
(V-AH) |
| Altertnator |
24-50 |
(V-A) |
| Kapasitas Tangki |
200 |
(liter) |
| Max. Gradeability |
38 |
(%) |
| Max. Speed |
– |
(Km/h) |
| Clutch Size |
– |
(mm) |

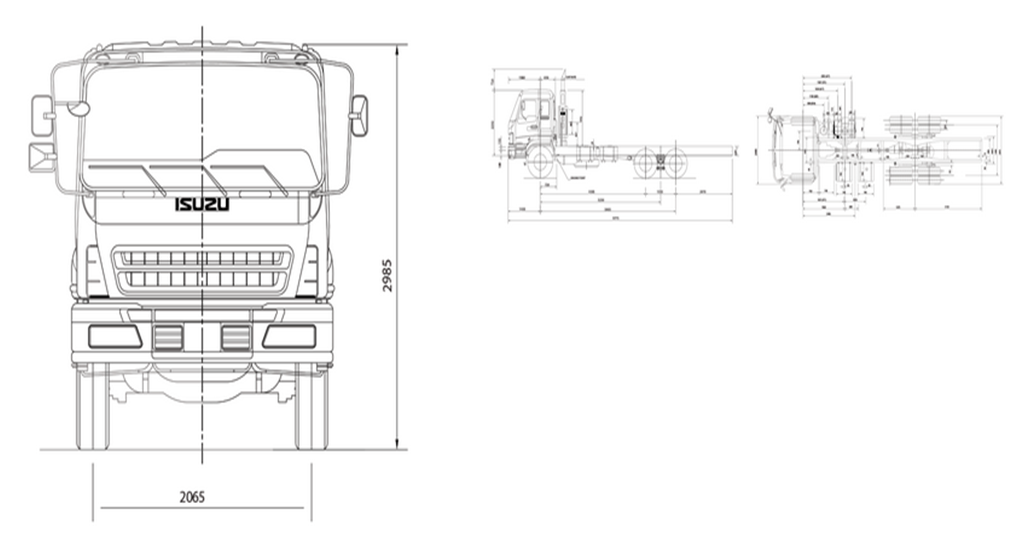

DIMENSI & UKURAN

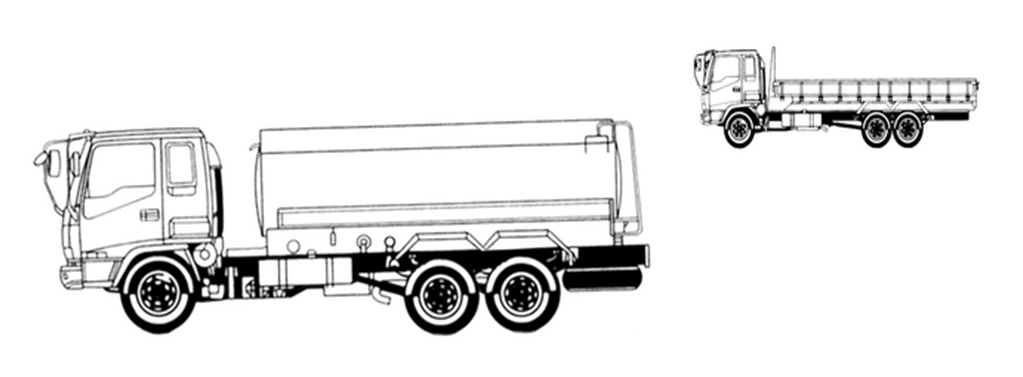

APLIKASI
