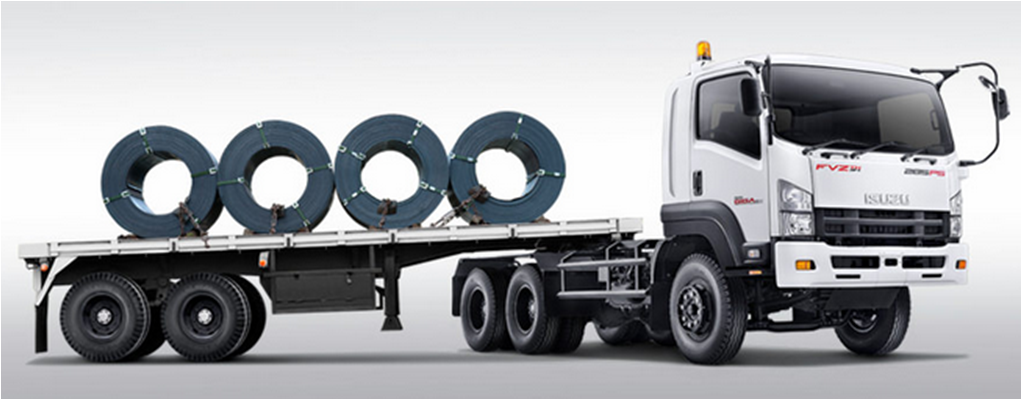

ISUZU GIGA
FVZ 34 TH
*) Estimasi harga on the road 2013 dan locco jakarta.
*) Harga dapat berubah-ubah tanpa pemberitahuan terlebih dahulu.
SPESIFIKASI
| Dimensi |
| |
| Panjang Keseluruhan |
7165 |
(mm) |
| Lebar Keseluruhan |
2500 |
(mm) |
| Tinggi Keseluruhan |
3030 |
(mm) |
| Jarak Terendah |
235 |
(mm) |
| Jarak Poros Roda |
4100+650 |
(mm) |
| Jarak Pijak Roda Depan |
1970 |
(mm) |
| Jarak Pijak Roda Belakang |
1845 |
(mm) |
| Seating Capacity |
– |
(person) |
| Front Axle Capacity |
– |
(kg) |
| Rear Axle Capacity |
– |
(kg) |
| Mesin |
| |
| Model/Tipe |
6HK1-TCS |
|
| Sistem injeksi bahan bakar |
Inline Four Cylinder, OHC, Direct Injection Diesel |
|
| Isi silinder |
7790 |
(cc) |
| Tenaga maksimum |
285/2400 |
(PS/rpm) |
| Torsi maksimum |
90/1450-2400 |
(Kgm/rpm) |
| Garis tengah x langkah |
115 x 125 |
(mm) |
| Kapasitas Tangki |
– |
(liter) |
| Ban & Velg |
| |
| Ukuran ban |
– |
|
| Bahan |
– |
|
| Ban Depan |
10.00-20-16PR |
|
| Ban Belakang |
10.00-20-16PR |
| Berat |
| |
| Curb Weight (berat kosong) |
7300 |
(kg) |
| Gross Vehicle Weight (berat total) |
38000 |
(kg) |
| Transmisi |
| |
| Model |
ZF9S1115TD |
|
| C |
12.728 |
|
| gigi 1 |
8.829 |
|
| gigi 2 |
6.281 |
|
| gigi 3 |
4.644 |
|
| gigi 4 |
3.478 |
|
| gigi 5 |
2.538 |
|
| gigi 6 |
1.806 |
|
| gigi 7 |
1.335 |
|
| gigi 8 |
1.000 |
|
| Rev |
12.040 |
|
| Final Gear Ratio |
6.143 |
| Fitur & Standard |
| |
| Air Conditioning |
– |
|
| Radio CD+MP3 |
Yes |
|
| Power Steering |
Yes |
| Lain-Lain |
| |
| Kursi supir |
– |
|
| Seat belt |
Yes |
|
| Accu |
12-60AH x 2 |
(V-AH) |
| Altertnator |
24-50 |
(V-A) |
| Kapasitas Tangki |
200 |
(liter) |
| Max. Gradeability |
30 |
(%) |
| Max. Speed |
90 |
(Km/h) |
| Clutch Size |
– |
(mm) |

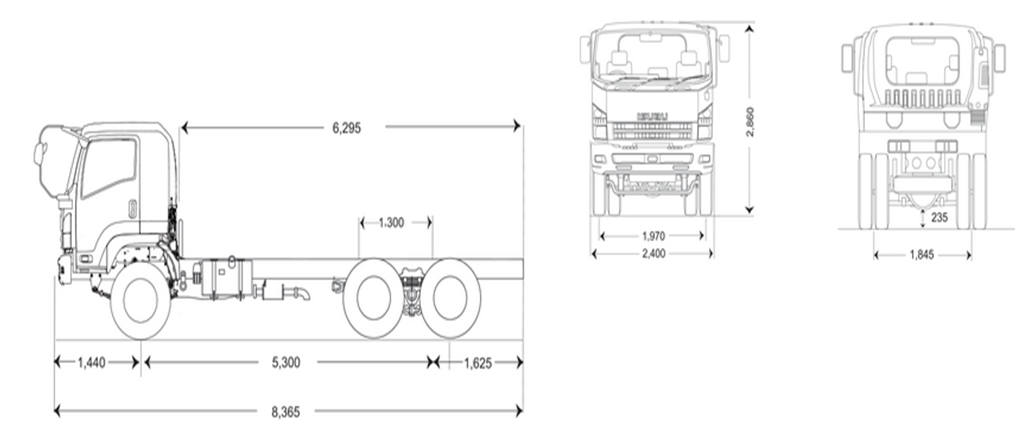

DIMENSI & UKURAN

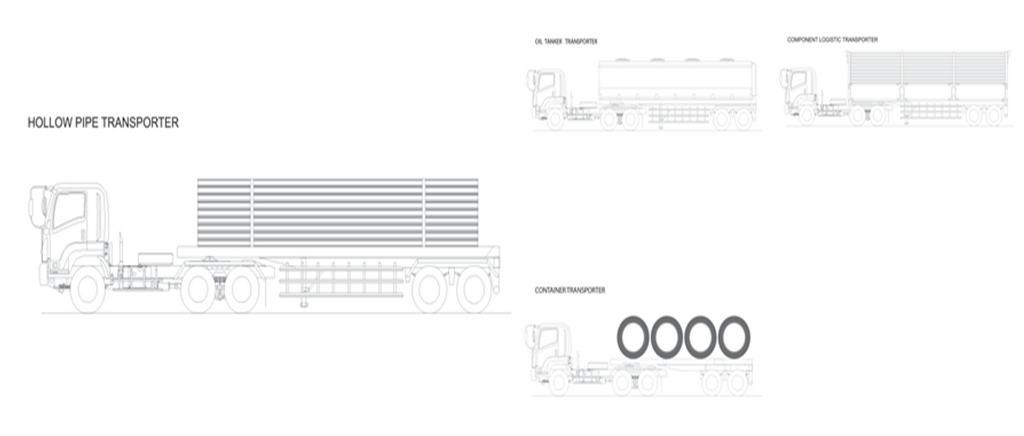

APLIKASI
