Truk untuk dengan berat lebih dari 6 ton. Cocok untuk di perkebunan dan pertambangan.
ISUZU ELF NPS 75 4×4
Spesifikasi
Dimensi
| Panjang Keseluruhan |
5985 |
(mm) |
| Lebar Keseluruhan |
2040 |
(mm) |
| Tinggi Keseluruhan |
2455 |
(mm) |
| Jarak Terendah |
210 |
(mm) |
| Jarak Poros Roda |
3365 |
(mm) |
| Jarak Pijak Roda Depan |
1680 |
(mm) |
| Jarak Pijak Roda Belakang |
1650 |
(mm) |
| Seating Capacity |
– |
(person) |
| Front Axle Capacity |
– |
(kg) |
| Rear Axle Capacity |
– |
(kg) |
Berat
| Curb Weight (berat kosong) |
2910 |
(kg) |
| Gross Vehicle Weight (berat total) |
6000 |
(kg) |
Transmisi
| Model |
MYY5T |
|
| C |
– |
|
| gigi 1 |
5.315 |
|
| gigi 2 |
3.053 |
|
| gigi 3 |
1.655 |
|
| gigi 4 |
1.000 |
|
| gigi 5 |
0.721 |
|
| gigi 6 |
– |
|
| gigi 7 |
– |
|
| gigi 8 |
– |
|
| Rev |
5.068 |
|
| Final Gear Ratio |
5.125 |
Mesin
| Model/Tipe |
4HK1TCN |
|
| Sistem injeksi bahan bakar |
Direct Injection, OHC, Intercooled Turbo |
|
| Isi silinder |
5193 |
(cc) |
| Tenaga maksimum |
150/2600 |
(PS/rpm) |
| Torsi maksimum |
41/1500-2600 |
(Kgm/rpm) |
| Garis tengah x langkah |
115 x 125 |
(mm) |
| Kapasitas Tangki |
100 |
(liter) |
Fitur & Standard
| Air Conditioning |
No |
|
| DVD, CD, MP3, USB, Aux in, Radio |
No |
|
| Power Steering |
No |
|
| Tilt & Telescopic Steering |
No |
|
| Reverse Parking Camera |
No |
|
| Retractable Seat Belt |
No |
|
| Tilt Cabin |
No |
Ban & Velg
| Ukuran ban |
– |
|
| Bahan |
– |
|
| Ban Depan |
Single, 7.50-16-10L |
|
| Ban Belakang |
Double, 7.50-16-10L |
|
Lain-Lain
| Kursi supir |
– |
|
| Seat belt |
Yes |
|
| Accu |
24-50 |
(V-AH) |
| Alternator |
24-50 |
(V-A) |
| Kapasitas Tangki |
100 |
(liter) |
| Max. Gradeability |
30 |
(%) |
| Max. Speed |
110 |
(Km/h) |
| Clutch Size |
– |
(mm) |

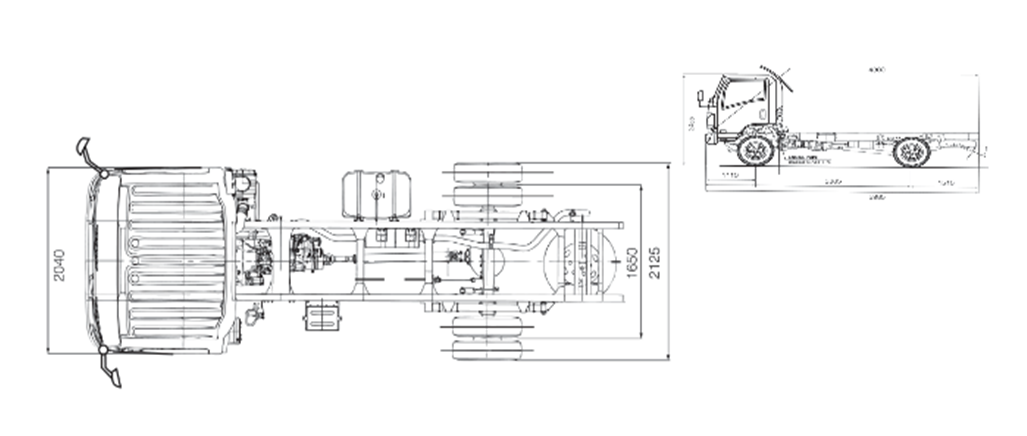

Dimensi & Ukuran
Aplikasi
