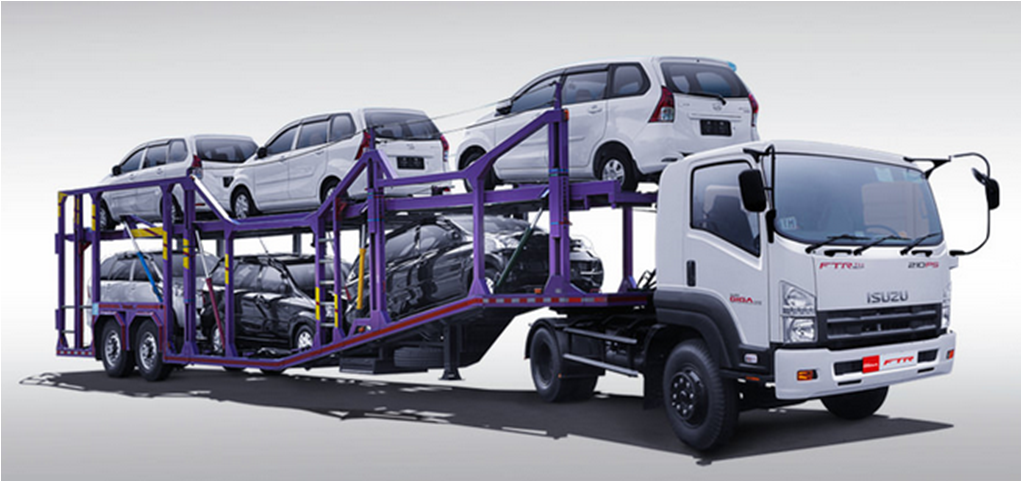

ISUZU GIGA
FTR 90 TH
*) Estimasi harga on the road 2013 dan locco jakarta.
*) Harga dapat berubah-ubah tanpa pemberitahuan terlebih dahulu.
SPESIFIKASI
| Dimensi |
|
| Panjang Keseluruhan |
5710 |
(mm) |
| Lebar Keseluruhan |
2400 |
(mm) |
| Tinggi Keseluruhan |
2890 |
(mm) |
| Jarak Terendah |
245 |
(mm) |
| Jarak Poros Roda |
3230 |
(mm) |
| Jarak Pijak Roda Depan |
1990 |
(mm) |
| Jarak Pijak Roda Belakang |
1790 |
(mm) |
| Seating Capacity |
– |
(person) |
| Front Axle Capacity |
– |
(kg) |
| Rear Axle Capacity |
– |
(kg) |
| Mesin |
|
| Model/Tipe |
4HK1-TCS |
|
| Sistem injeksi bahan bakar |
Inline four cylinder, OHC, Turbo Direct Injection Diesel |
|
| Isi silinder |
5193 |
(cc) |
| Tenaga maksimum |
210/2,600 |
(PS/rpm) |
| Torsi maksimum |
65/1,600-2,600 |
(Kgm/rpm) |
| Garis tengah x langkah |
115 x 125 |
(mm) |
| Kapasitas Tangki |
– |
(liter) |
| Ban & Velg |
|
| Ukuran ban |
– |
|
| Bahan |
– |
|
| Ban Depan |
Single, 9.00-20-14PR (Miller) |
|
| Ban Belakang |
Double, 9.00-20-14PR (Miller) |
| Berat |
|
| Curb Weight (berat kosong) |
4680 |
(kg) |
| Gross Vehicle Weight (berat total) |
28000 |
(kg) |
| Transmisi |
|
| Model |
MZW6P |
|
| C |
– |
|
| gigi 1 |
6.615 |
|
| gigi 2 |
4.095 |
|
| gigi 3 |
2.358 |
|
| gigi 4 |
1.531 |
|
| gigi 5 |
1.000 |
|
| gigi 6 |
0.722 |
|
| gigi 7 |
– |
|
| gigi 8 |
– |
|
| Rev |
6.615 |
|
| Final Gear Ratio |
6.500 |
| Fitur & Standard |
|
| Air Conditioning |
– |
|
| Radio CD+MP3 |
Yes |
|
| Power Steering |
Yes |
| Lain-Lain |
|
| Kursi supir |
– |
|
| Seat belt |
Yes |
|
| Accu |
12-60AHx2 |
(V-AH) |
| Altertnator |
24-50 |
(V-A) |
| Kapasitas Tangki |
200 |
(liter) |
| Max. Gradeability |
37 |
(%) |
| Max. Speed |
107 |
(Km/h) |
| Clutch Size |
– |
(mm) |

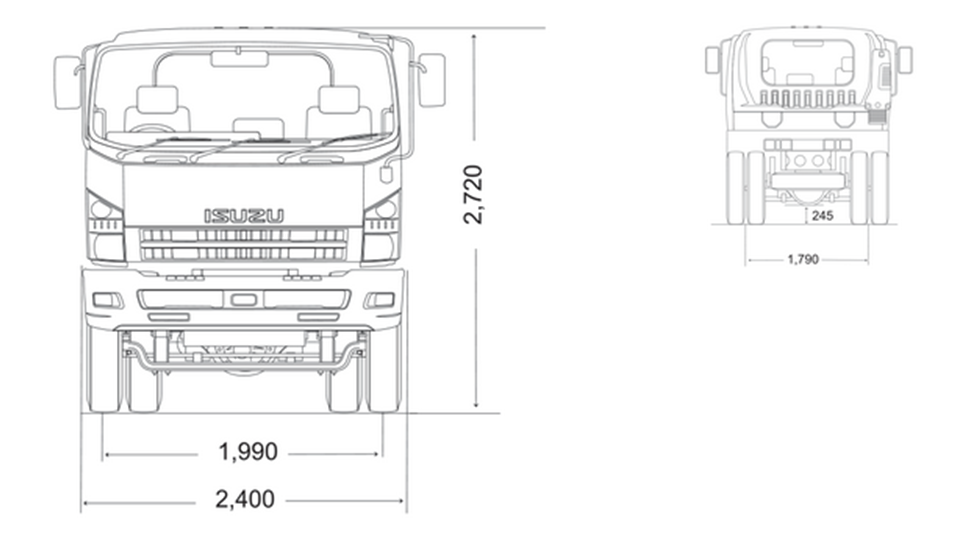

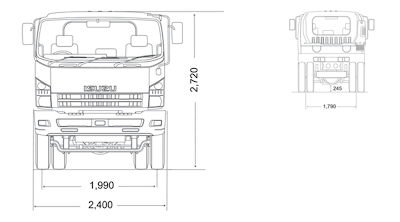

DIMENSI & UKURAN

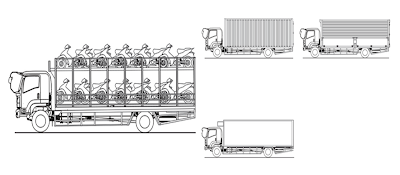

APLIKASI
