Truk medium dengan mesin 6 silinder dengan TENAGA BESAR dengan volume besar yang digunakan untuk angkutan jarak menengah sampai antar pulau.
Spesifikasi
Dimensi
| Panjang Keseluruhan |
11480 |
(mm) |
| Lebar Keseluruhan |
2400 |
(mm) |
| Tinggi Keseluruhan |
2860 |
(mm) |
| Jarak Terendah |
235 |
(mm) |
| Jarak Poros Roda |
7120 |
(mm) |
| Jarak Pijak Roda Depan |
1970 |
(mm) |
| Jarak Pijak Roda Belakang |
1845 |
(mm) |
| Seating Capacity |
– |
(person) |
| Front Axle Capacity |
– |
(kg) |
| Rear Axle Capacity |
– |
(kg) |
Berat
| Curb Weight (berat kosong) |
6693 |
(kg) |
| Gross Vehicle Weight (berat total) |
26000 |
(kg) |
Transmisi
| Model |
MZW6P |
|
| C |
– |
|
| gigi 1 |
6.615 |
|
| gigi 2 |
4.095 |
|
| gigi 3 |
2.358 |
|
| gigi 4 |
1.531 |
|
| gigi 5 |
1.000 |
|
| gigi 6 |
0.722 |
|
| gigi 7 |
– |
|
| gigi 8 |
– |
|
| Rev |
6.615 |
|
| Final Gear Ratio |
7.167 |
Mesin
| Model/Tipe |
6HK1-TCN |
|
| Sistem injeksi bahan bakar |
Inline Six Cylinder, OHC, Direct Injection Diesel |
|
| Isi silinder |
7790 |
(cc) |
| Tenaga maksimum |
240/2400 |
(PS/rpm) |
| Torsi maksimum |
72/1450-2400 |
(Kgm/rpm) |
| Garis tengah x langkah |
115×125 |
(mm) |
| Kapasitas Tangki |
200 |
(liter) |
Ban & Velg
| Ukuran ban |
– |
|
| Bahan |
– |
|
| Ban Depan |
10.00-20-16PR (Miler) |
|
| Ban Belakang |
10.00-20-16PR (Miler) |
Lain-Lain
| Kursi supir |
– |
|
| Seat belt |
Yes |
|
| Accu |
– |
(V-AH) |
| Alternator |
24-50 |
(V-A) |
| Kapasitas Tangki |
200 |
(liter) |
| Max. Gradeability |
21(6.66) 22(7.166) |
(%) |
| Max. Speed |
98 (7.167) 105 (6.667) |
(Km/h) |
| Clutch Size |
– |
(mm) |

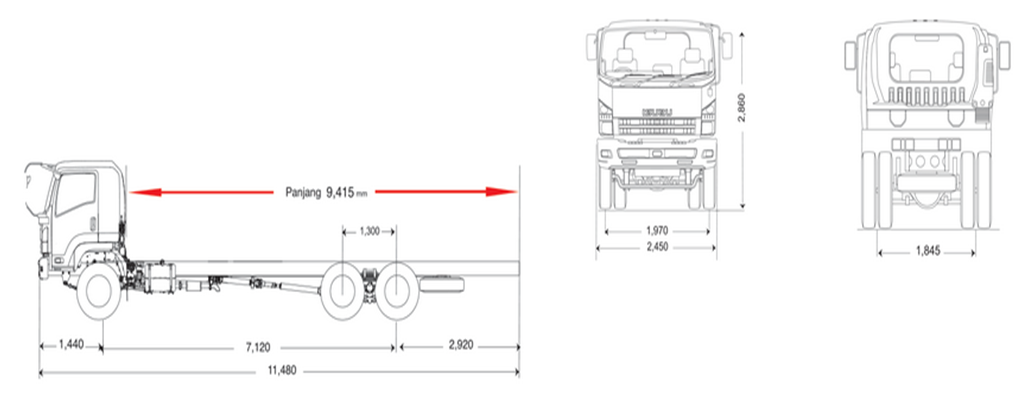

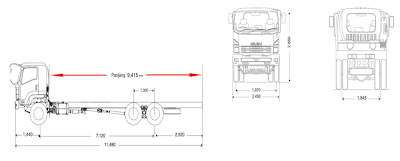

Dimensi & Ukuran

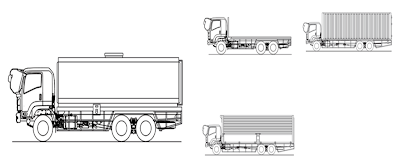

Aplikasi
